For superyacht owners, captains, managers and technical engineers, propulsion reliability is non-negotiable. A well-maintained Caterpillar (CAT) marine engine is engineered for longevity, but even the most robust systems require periodic diagnostics and, eventually, a full overhaul. Understanding how and when this process takes place is critical to protecting performance, safety, and long-term value.
Find out more about authorised CAT dealers, Motortec
When Does A CAT Yacht Engine Need an Overhaul?
A CAT yacht engine overhaul is typically driven by running hours, performance degradation, or condition-based indicators rather than a single failure point. Most high-performance marine diesel engines are scheduled for overhaul within manufacturer-recommended service intervals, often between 10,000-30,000 operating hours, depending on the age, model, fuel consumption, and usage profile.
However, real-world conditions often accelerate the need. Key warning signs include:
- Loss of power or reduced RPM under load
- Increased fuel consumption
- Excessive exhaust smoke (black, blue, or white)
- Rising oil consumption or contamination
- Abnormal vibrations
- Overheating or inconsistent cooling performance
Modern yachts increasingly rely on condition-based maintenance, where engineers use diagnostic data and performance trends to assess engine health and determine when maintenance or overhaul is required, rather than relying solely on operating hours.
Send us your engine serial number and engine hours and we will tell you exactly what you need

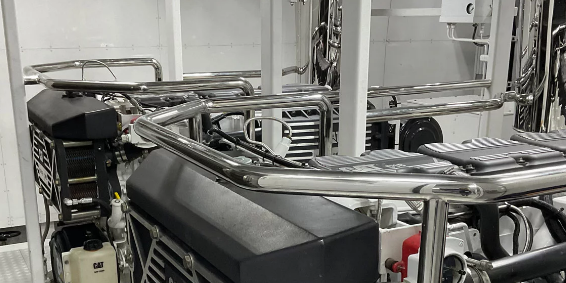

The Diagnostics Process: Borescopy, Oil Analysis and Performance Testing
Before any overhaul decision is made, a comprehensive diagnostic assessment is carried out by certified CAT marine engineers.
Borescopy Inspection
A borescope is inserted into the combustion chamber to visually inspect:
- Cylinder liner for scoring or wear
- Piston crowns for carbon build-up or damage
- Valve condition and seating
This non-invasive method provides immediate insight into internal engine health without disassembly.
Oil Analysis
Routine oil sampling reveals microscopic evidence of wear. Laboratory testing identifies:
- Metal particles (iron, aluminium, copper)
- Fuel dilution, water or coolant ingress
- Oil degradation levels
Trending this data over time allows engineers to predict failures before they occur.
Performance Testing
Engine performance is evaluated under load conditions, measuring:
- Fuel injection efficiency
- Turbocharger output
- Exhaust temperature balance
- Compression levels
Together, these diagnostics form a data-driven foundation for deciding whether a full overhaul is necessary or if targeted repairs will suffice.

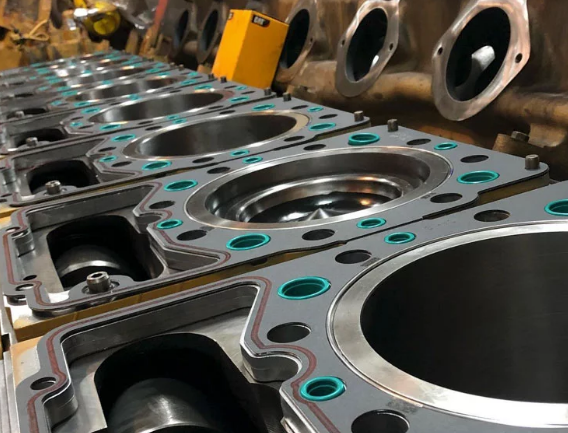

Role of Caterpillar Reman Parts in Engine Rebuilding
A defining feature of CAT engine overhauls is the use of Caterpillar Remanufactured (Reman) parts.
These components are not simply refurbished; they are restored to original OEM specifications through a controlled industrial process that includes:
- Complete disassembly and cleaning
- Replacement of all critical wear components
- Precision machining and testing
- Final validation to factory tolerances
Why Reman Parts Are Preferred:
- Cost Efficiency: Typically 40-60% less than new components
- Reliability: Same performance standards as new parts
- Sustainability: Reduced material waste and environmental impact
- Warranty Support: Backed by manufacturer-level warranties
For yacht engineers, Reman parts provide a balance between performance integrity and cost control, making them a standard choice in marine overhauls.
Browse Motortec’s range of CAT parts
Step-By-Step: Yacht Engine Overhaul Workflow
A full CAT marine engine overhaul is a structured, multi-phase process carried out either onboard or in a specialised workshop.
1. Engine Removal (if required)
Depending on access and scope, the engine may be removed and transported to a controlled facility.
2. Complete Disassembly
The engine is stripped down to its core components, including:
- Cylinder heads
- Crankshaft, Camshaft
- Pistons and liners
- Turbochargers
- Fuel system components
- And more!
3. Component Inspection and Measurement
Each part is measured against OEM tolerance using precision tools. Components are:
- Reused (if with tolerance)
- Reconditioned
- Replaced with new or Reman parts
4. Machine and Reconditioning
Critical surfaces such as crankshafts and cylinder heads may undergo machining to restore exact specifications,
5. Reassembly
The engine is rebuilt using calibrated torque settings, new seals, gaskets, and approved components.
6. System Integration
Fuel systems, cooling system, and electronic controls are reinstalled and calibrated.
This meticulous workflow ensures the engine is effectively returned to “as-new” operational condition.
Post-Overhaul Testing: Sea Trial, Emissions and Performance Validation
Once reinstalled, the engine undergoes rigorous validation procedures.
Dockside Testing
Initial tests confirm:
- Oil pressure stability
- Cooling system efficiency
- Absence of leaks or abnormal vibrations
Sea Trials
Under real operating conditions, engineers assess:
- Parameter recordings at various speed according to original engine testing in factory
- Load response and acceleration
- Maximum RPM and power output
- Fuel efficiency under varying loads
Emissions and Compliance Checks
Modern marine engines must meet environmental standards. Post-overhaul checks ensure:
- Proper combustion efficiency
- Reduced particulate emissions
- Compliance with IMO regulations where applicable
Only after passing these tests is the engine signed off for operational use.
Check out our other maintenance services for CAT engines

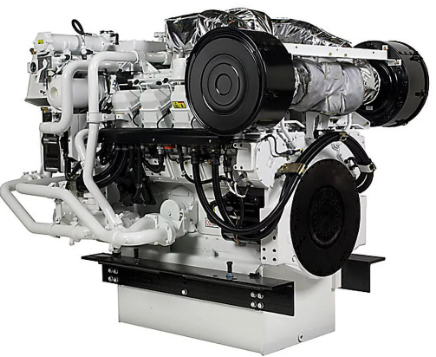

Cost Considerations and ROI of Overhaul vs Replacement
One of the most critical decisions for yacht owners is whether to overhaul or replace an engine.
Overhaul Advantages:
- Lower upfront cost (typically 30-50% less than replacement)
- Shorter downtime (depending on scope)
- Retention of existing installation setup
Replacement Conditions:
- Higher capital expenditure
- Potential need for structural modifications
- Opportunity for upgraded efficiency or emissions compliance
ROI Perspective
A properly executed overhaul can extend engine life by another full service cycle, delivering a strong return on investment, especially when combined with updated components and calibration.
Maintenance Strategies to Delay Overhaul Needs
Proactive maintenance is the most effective way to maximise engine lifespan and delay costly overhauls.
Key strategies include:
- Routine oil and filter changes using OEM-approved products
- Scheduled oil analysis to track internal wear
- Fuel system maintenance to prevent injector fouling
- Cooling system flushing and inspection
- Load management to avoid prolonged inefficient running
Additionally, integrating engine monitoring systems allows real-time tracking of performance data, enabling early intervention before major issues develop.
Why Authorised CAT Dealer Oversight Guarantees Component Quality
A CAT marine engine overhaul should always be conducted under the supervision of an authorised dealer like Motortec.
Key Benefits:
- Access to genuine parts and Reman components
- Factory-trained technicians with model-specific expertise
- Compliance with manufacturer service protocols
- Warranty protection on parts and labour
- Advanced diagnostic tools and software
Authorised oversight ensures that every stage, from diagnostics to final sea trials, meets the strict engineering standards required for high-value yacht operations.
A CAT marine engine overhaul is not just a repair process; it is a precision-engineered lifecycle reset. From advanced diagnostics and Reman component integration to rigorous testing and validation, every stage is designed to restore peak performance and reliability.
For yacht owners and operators, investing in professional diagnostics and certified overhaul services is essential to maintaining operational confidence, protecting asset value, and ensuring seamless performance at sea.
